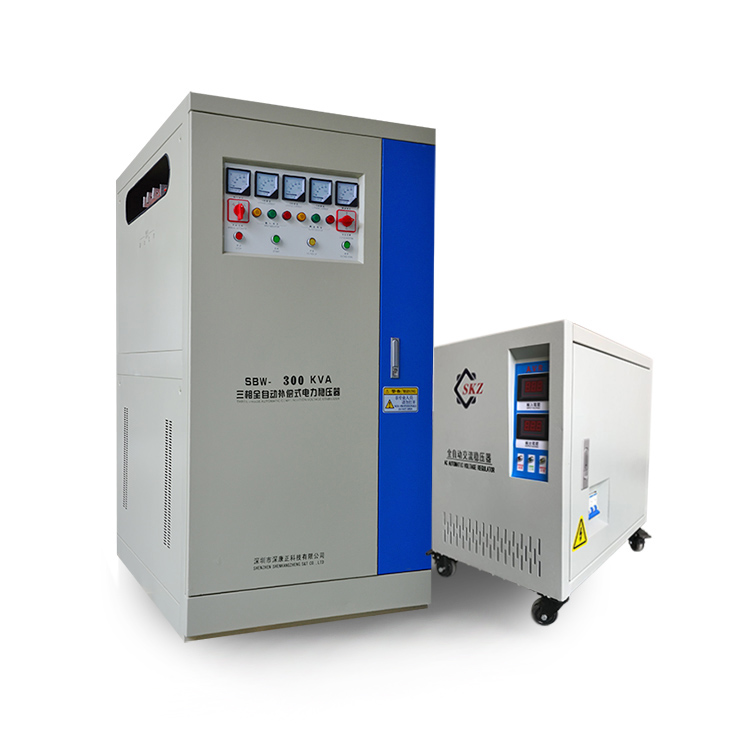

Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA

Categories: , ,

Model: Industrial Voltage Stabilizer


Send Enquiry     Email Us

Industrial machines require stable input voltage. If the voltage is unstable, the machines may stop working and some parts may be damaged. To solve the power supply problem for industrial machines, our engineers have specially designed the industrial voltage stabilizer. The voltage regulation range for this stabilizer is ±20%~±45%, and the output volatge accuracy is ±1% to ±5%(can be selected). This AC stabilizer can effectively offer constant voltage for the machines and it can protect against overload, overvoltage, overcurrent, phase failure, phase sequence error, frequency variation and waveform distortion. Customized specifications of the stabilizer for various industrial equipment are available.

Pictures:

10KVA-80KVA

Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA



80KVA-600KVA:

Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA Servo Controlled Industrial Voltage Stabilizer 10KVA-600KVA



Specifications:

Input Voltage Three phase voltage ±20%~±45%
Input Voltage Range ±20%~±45%
Output Voltage Three phase voltage
Frequency 50/60Hz
Rated Power 10KVA-600KVA
Accuracy of Output Voltage 2%-5% (it can be selected)
Efficiency ≥95%
Response Speed ≤1.5S (when outside voltage has 10% of change)
Waveform Distortion No additive waveform distortion
Protection Protection against overload, over voltage, over current, phase failure and phase sequence
Insulation Resistance ≥2MΩ
Electric Strength Testing under 2,000V 50/60Hz voltage for 1 min without breakdown or flash over.
Overload Capability Working normally for 1 minute under 2 times of rated current.

Application:
Industrial voltage stabilizer is widely used for all kinds of industrial machines.




Input Voltage

Three phase ±20%;~±45%

Output Voltage

Three phase voltage

Frequency

50Hz/60Hz

Rated Power

10KVA-600KVA Customization
